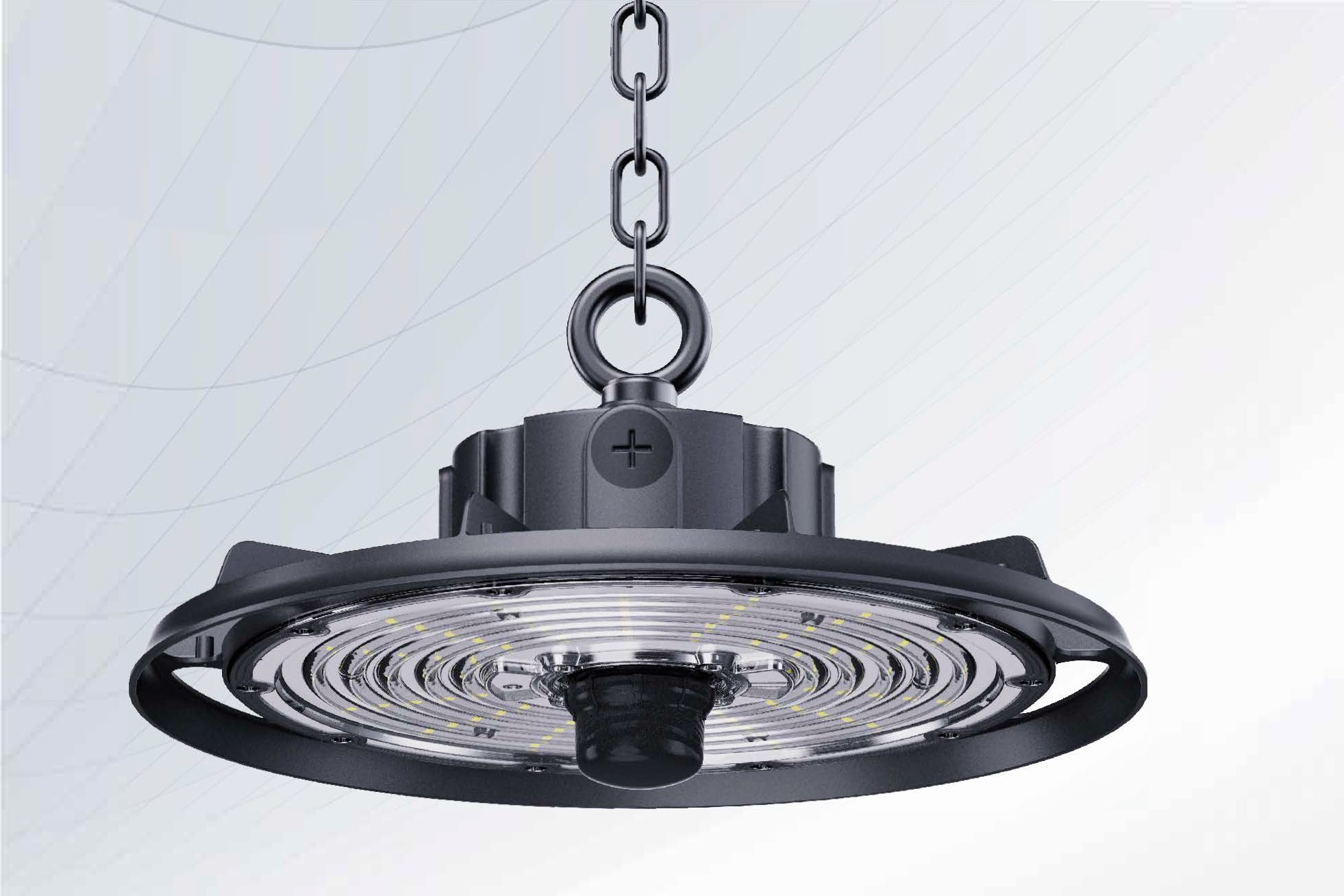

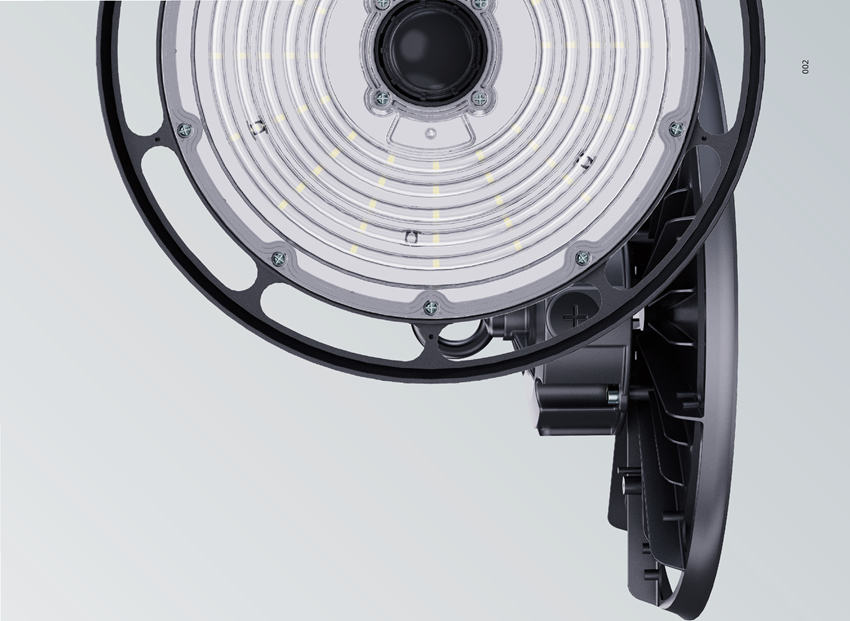

LED High bay light

Product Item : LS218G5
Category： LED High bay light
100W/150W/200W
IP65
190Lm/W
SMD2835 LED Chip
INQUIRY EMAIL

Product Description:

When design meets innovation, amazing things happen.

The LS218G5 does not conform to traditional lighting design standards, and its extended series is no exception.

Today, aesthetics plays an important role in every aspect of life, and standing out in an increasingly saturated market is no easy task. Every week, new high-end products launch on the market that offer lower operating temperatures, yet consumers still demand greater power, brighter LEDs, longer lifespans, and more.

So we broke the pattern, cast aside the rules, and created something truly unique.

After more than a year of design, development, prototyping, and testing, the LS218G5 delivers the perfect solution.

As a result, this groundbreaking design offers unparalleled functionality compared to other products currently available on the market.

Parameter Category	Parameter Name	Unit	LS218G5-A-5	LS218G5-A-M	LS218G5-A-L
Electric Data	Model	-	LS218G5-A-5	LS218G5-A-M	LS218G5-A-L
	Power	W	100	150	200
	Nominal Voltage	-	AC100-277V, 50/60Hz	AC100-277V, 50/60Hz	AC100-277V, 50/60Hz
Photometric Specifications	Driver	-	Power supply can be selected according to demand	Power supply can be selected according to demand	Power supply can be selected according to demand
	LED Chip	-	SMD2835	SMD2835	SMD2835
	CRI	-	CRI70/CRI80	CRI70/CRI80	CRI70/CRI80
	CCT	K	4000K/5000K/6500K	4000K/5000K/6500K	4000K/5000K/6500K

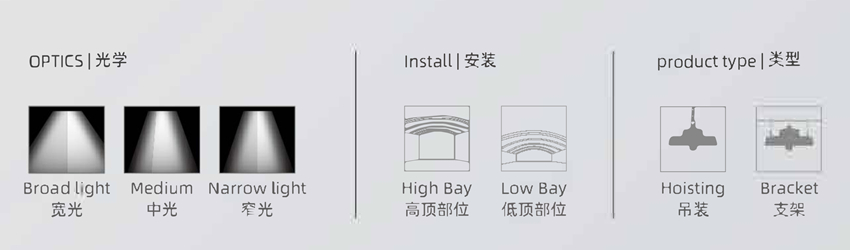

	Beam Angle	°	60°/90°/120°	60°/90°/120°	60°/90°/120°
	Luminous Efficiency	Lumen/W	190	190	190
	Luminous Flux (±10%)	Lumen	19000	28500	38000
Mechanical Specifications	IP Rate	-	IP65	IP65	IP65
	Surge Protection	kV	10	10	10
	Working Environment	-	-20℃~+45℃, 20%~90% RH	-20℃~+45℃, 20%~90% RH	-20℃~+45℃, 20%~90% RH
	Storage Temperature	-	-20℃~70℃, 10%~90% RH	-20℃~70℃, 10%~90% RH	-20℃~70℃, 10%~90% RH
	Body Material	-	Aluminum die-casting	Aluminum die-casting	Aluminum die-casting
	Lens Material	-	PC Lens	PC Lens	PC Lens

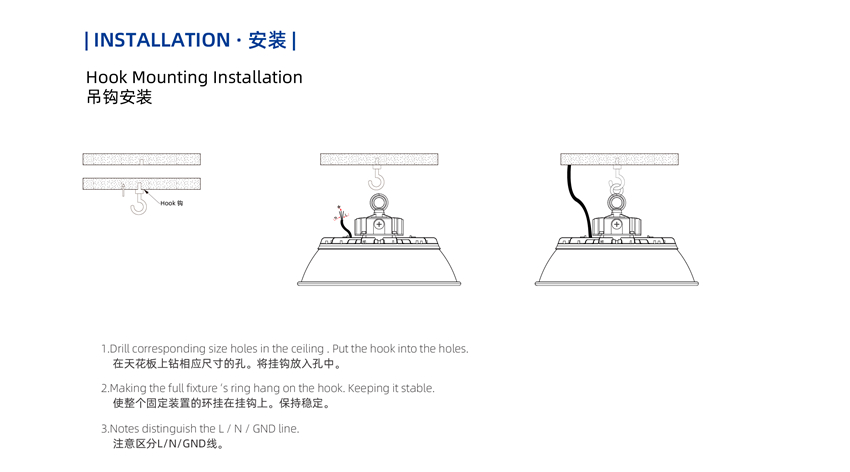

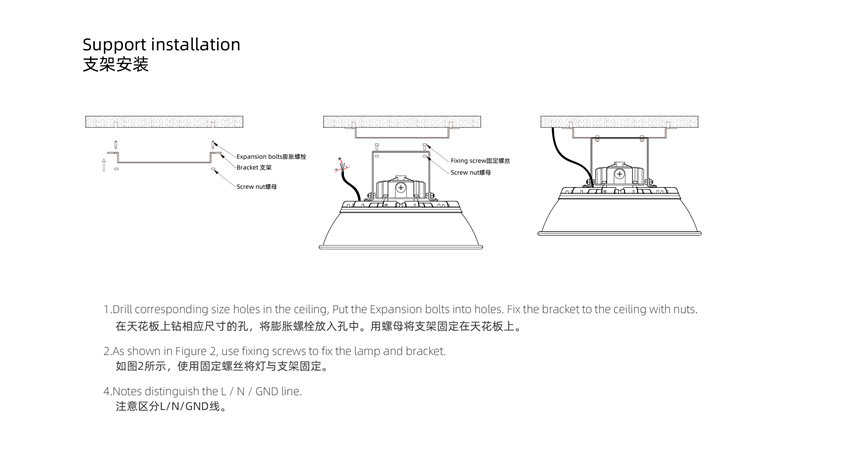

	Installation Height	m	4m-15m	4m-15m	4m-15m
	Lamp Body Diameter & Height	mm	φ242×149mm φ346×248mm	φ289×149mm φ400×248mm	φ328×149mm φ438×248mm
	Luminaire N.W.	/kg	-	-	-
